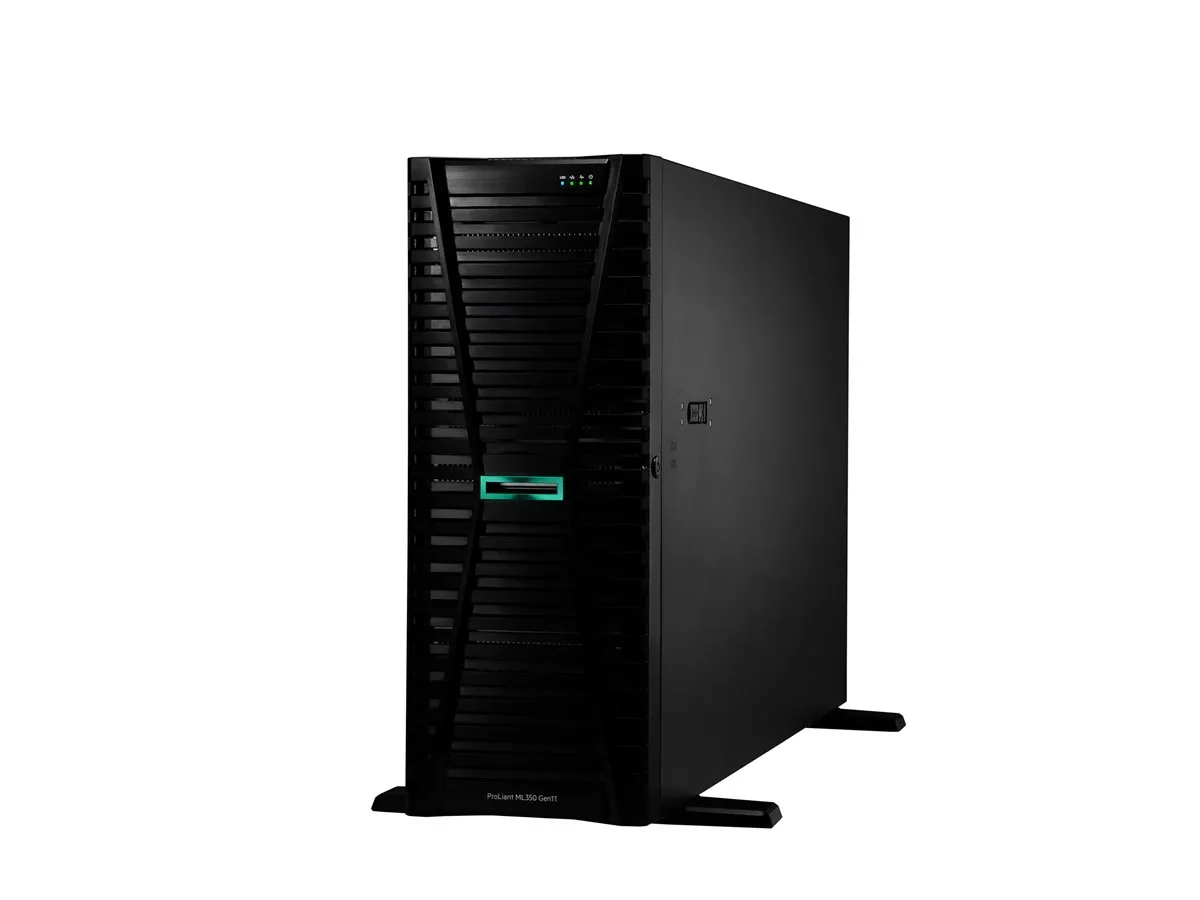

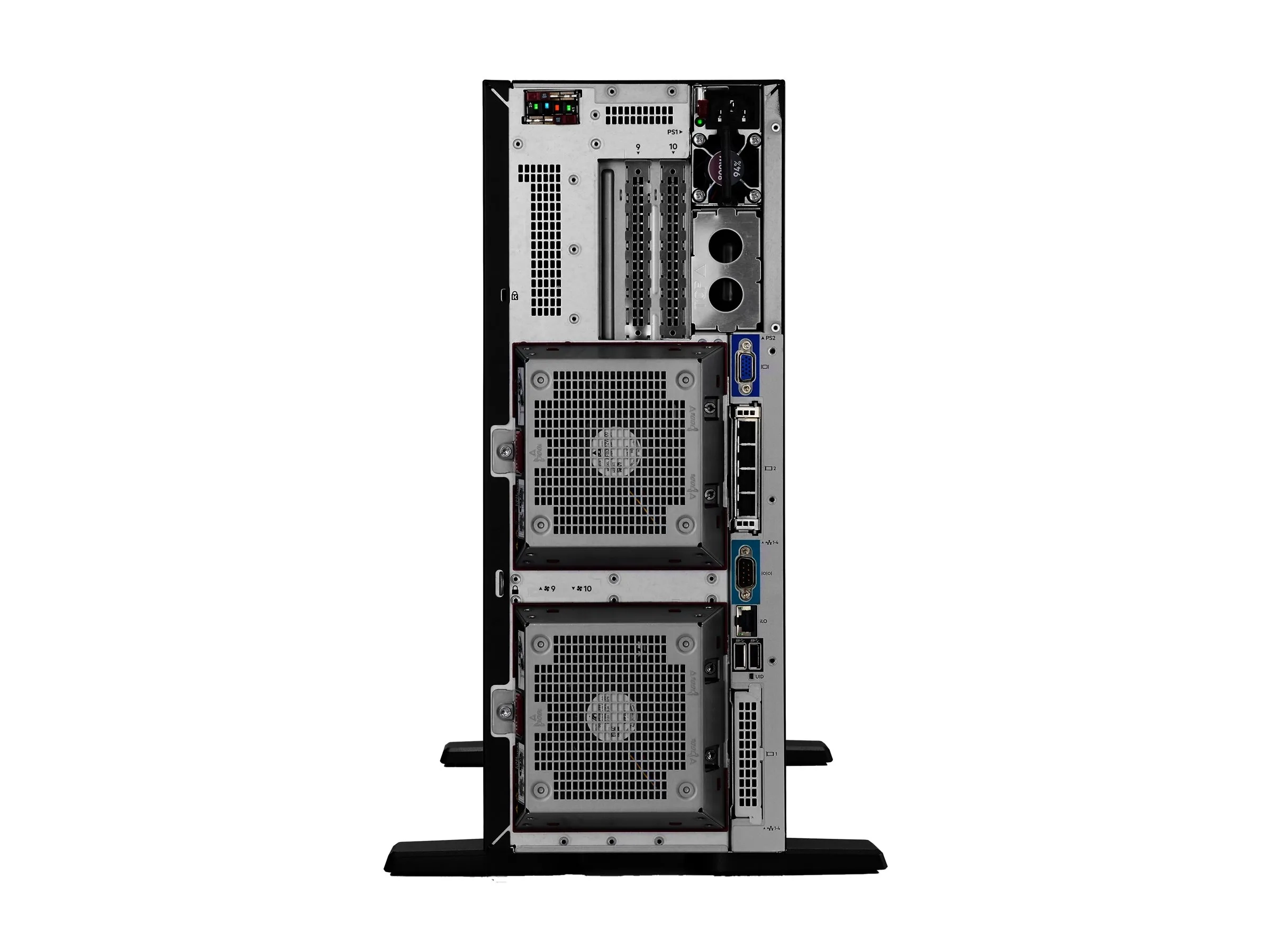

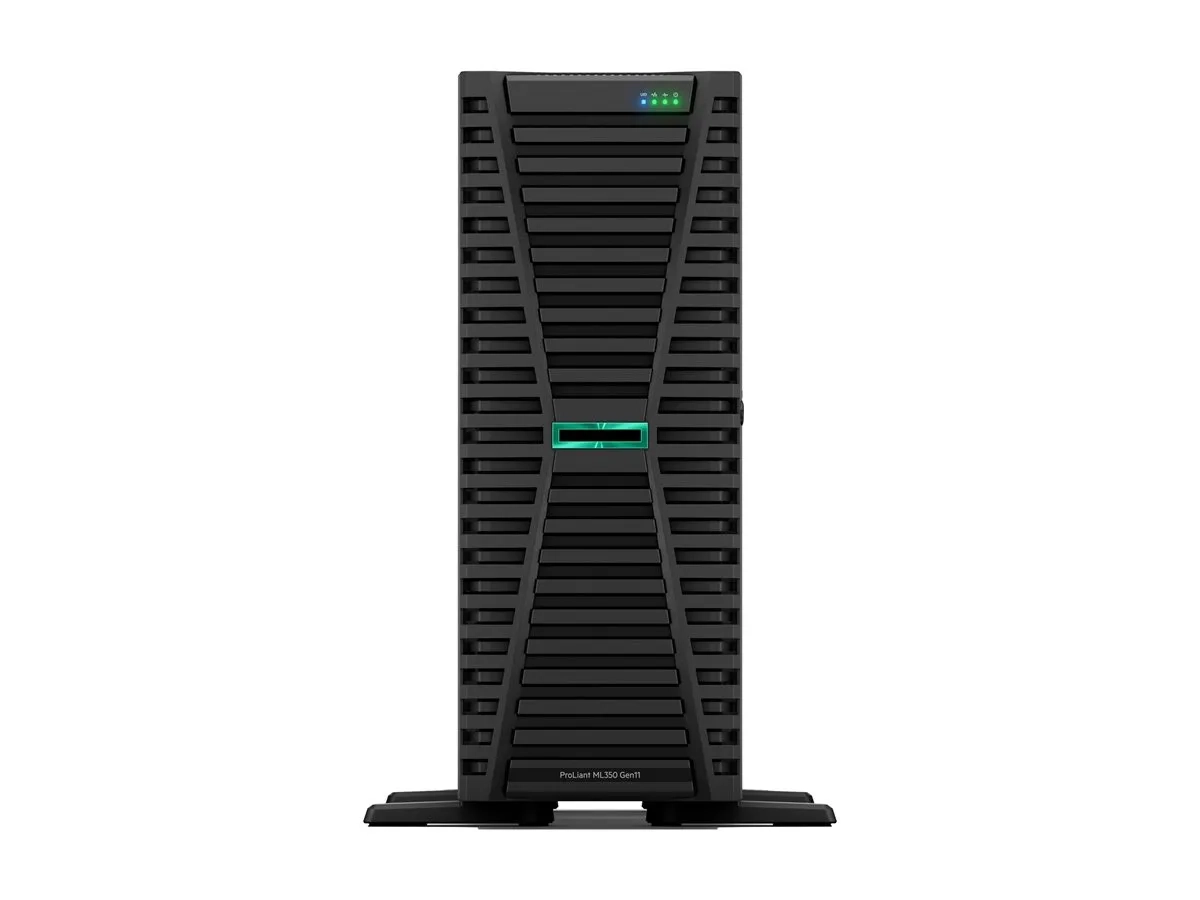

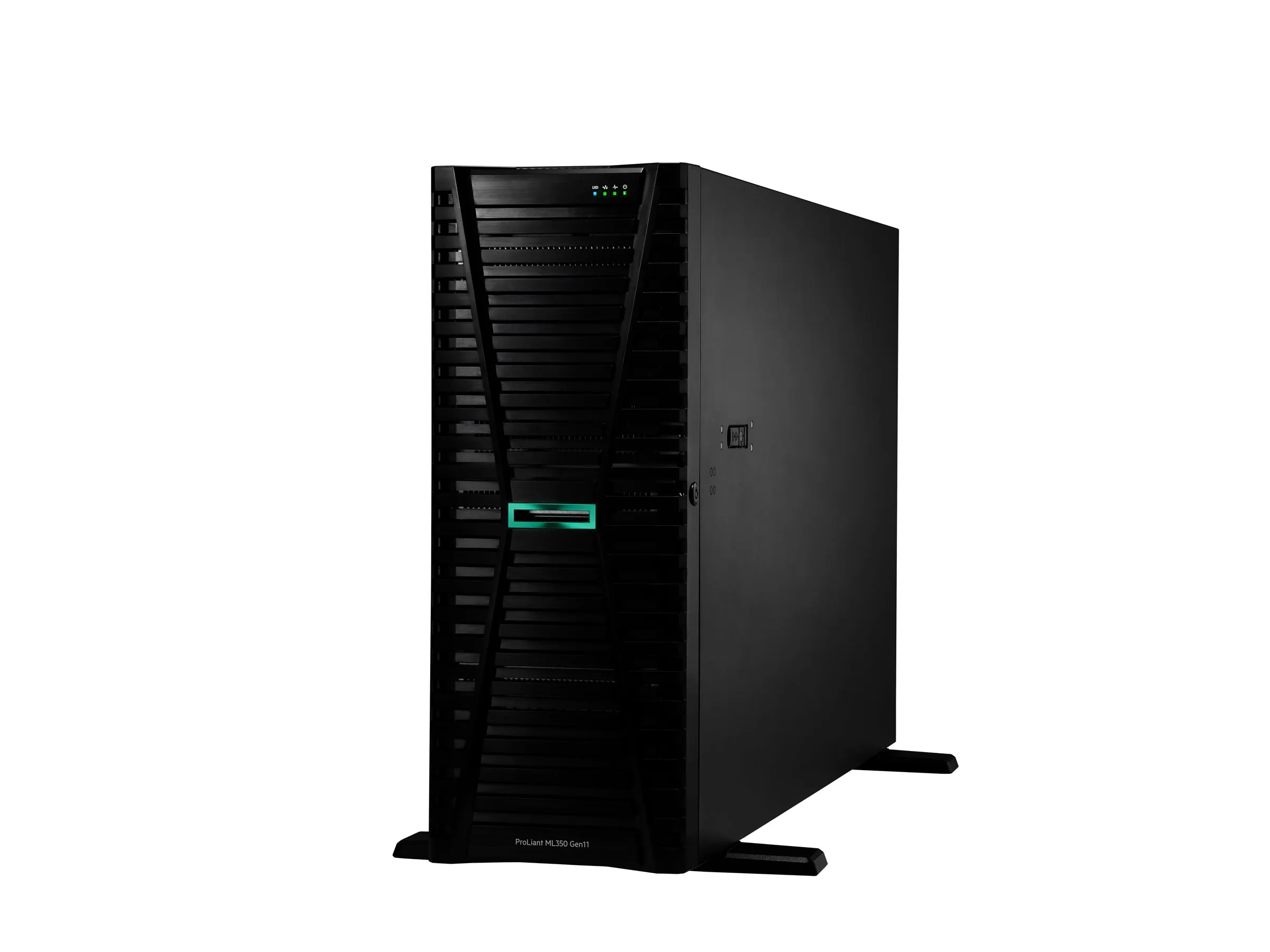

HPE ProLiant ML350 Gen11HPE ProLiant ML350 Gen11 - tour Xeon Silver 4509Y 2.6 GHz - 32 Go - aucun disque dur
Général | Facteur de forme | Tour - 4U |
---|---|---|
Type | Serveur | |
Appareils intégrés | Panneau de voyants | |
Nombre de baies pour unités échangeables à chaud | 8 | |
Evolutivité des Serveurs | 2 voies | |
Sécurité intégrée | Trusted Platform Module (TPM 2.0) Security Chip | |
Localisation | Région : EMEA | |
Alimentation | Tension requise | CA 100-120/200-240 V |
Nombre max. pris en charge | 2 | |
Type de périphérique | Alimentation - branchement à chaud | |
Alimentation redondante | En option | |
Certification 80 PLUS | 80 PLUS Titanium | |
Nombre installé | 1 | |
Alimentation fournie | 1000 Watt | |
Plan d'action pour système d'alimentation redondante | 1+1 (avec source d'alimentation en option) | |
Contrôleur graphique | Mémoire vidéo | 16 Mo |
Interfaces vidéo | VGA | |
Processeur / Chipset | Nombre maximum d'unités centrales | 2 |
Fréquence d'horloge | 2.6 GHz | |
Évolutivité de l'unité centrale | Évolutif | |
Vitesse maximale en mode Turbo | 4.1 GHz | |
Type de chipset | Intel C741 | |
CPU | Xeon Silver 4509Y | |
Nombre d'unités centrales | 1 | |
Nombre de coeurs | 8 cœurs | |
Réseaux | Contrôleur Ethernet | Broadcom BCM5719 |
Ports Ethernet | 4 x Gigabit Ethernet | |
Type d'interface (bus) | Open Compute Project mezzanine (OCP) 3.0 | |
Caractéristiques | Wake on LAN (WoL), support PXE | |
Remote Management Controller (contrôleur de gestion à distance) | Integrated Lights-Out 6 | |
Protocole de liaison de données | Ethernet, Fast Ethernet, Gigabit Ethernet | |
Protocole de gestion à distance | SNMP 3, SMASH CLP | |
Contrôleur de stockage | Nom du contrôleur de stockage | HPE MR408i-o Gen11 SPDM |
Niveau RAID | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, RAID 60 | |
Type | 1 x RAID - OCP | |
Type d'interface du contrôleur | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) | |
Taille de la mémoire tampon | 4 Go | |
Nbre de canaux | 8 | |
RAM | Vitesse de mémoire effective | 4400 MHz |
Vitesse nominale de la mémoire | 5600 MHz | |
Caractéristiques de configuration | 1 x 32 Go | |
Technologie | DDR5 SDRAM - ECC avancé | |
Taille installée | 32 Go (installé) / 4 To (maximum) | |
Caractéristiques | Deux rangs, mémoire enregistré, logements 17 - 32 disponibles uniquement dans le cas d'une configuration à deux processeurs, HPE SmartMemory, architecture de mémoire à 8 canaux | |
Format | DIMM 288 broches | |
Emplacements | 16 (Totale) / 15 (vide) | |
Moniteur | Type de moniteur | Aucun |
Dimensions et poids | Profondeur | 71.2 cm |
Hauteur | 46.2 cm | |
Poids | 24.73 kg | |
Largeur | 17.4 cm | |
Système d'exploitation / Logiciels | Système d'exploitation fourni | Aucun système d'exploitation fourni |
Caractéristiques d’environnement | Température maximale de fonctionnement | 35 °C |
Température minimale de fonctionnement | 10 °C | |
Taux d'humidité en fonctionnement | 8-90 % sans condensation | |
Divers | Accessoires inclus | 3 ventilateurs standards |
Protection antivol/anti-intrusion | Œil de cadenas, fente de verrouillage de sécurité (câble de verrouillage vendu séparément) | |
Normes de conformité | ACPI 6.1, ASHRAE Class A3, ASHRAE Class A4, FIPS 140-3, ErP Lot 9 | |
Type de logement de sécurité | Serrure de sécurité Kensington | |
Extension/connectivité | Emplacements | 4 (total) / 4 (libre) x PCIe 5.0 x16 (mode x 8) |
Interfaces | 1 x VGA ¦ 1 x série ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO - RJ-45 ¦ 4 x USB 3.2 Gen 1 (1 à l'avant, 2 à l'arrière, 1 au-dessus) ¦ 1 x USB 2.0 (1 fond) ¦ 1 x HPE iLO - Type A (1 à l'avant) | |
Baies | 8 (total) / 8 (libre) x remplacement à chaud 2.5" SFF | |
Informations sur le développement durable | Certifié ENERGY STAR | Oui |
Mémoire cache | Cache par processeur | 22.5 Mo |
Taille installée | 22.5 Mo | |
Disque dur | Type | Aucun disque dur |
Garantie du fabricant | Service et maintenance | Garantie limitée - pièces et main d'oeuvre - 3 ans - sur site - temps de réponse : jour ouvré suivant |
Stockage optique | Type | Pas de disque optique |
Fonctionnalités
- Intuitive Cloud Operating Experience: Simple, Self-service, and Automated
HPE ProLiant ML350 Gen11 servers are engineered for your hybrid world. The new ProLiant Gen11 servers simplify the way you control your business's compute-from edge to cloud-with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.
These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consume as-a-service using HPE GreenLake as your compute and storage demands grow.
Simplifiez et sécurisez la gestion des serveurs de l'edge au cloud avec HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management constitue une expérience de gestion de calcul as-a-service qui offre une simplicité, une agilité et une vitesse supérieures dans l'ensemble de votre architecture de calcul, partout dans le monde. - Trusted Security by Design: Uncompromising, Fundamental, and Protected
HPE ProLiant ML350 Gen11 server uses the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the Intel Processor that must be matched exactly before the server will boot. This verifies that malicious code is contained, and healthy servers are protected.
HPE ProLiant Gen11 servers continuously protect healthy servers at the edge by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, with IDevID certificates installed by default.
HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, data connections, and providing a fast path to bring a server back online and into normal operations.
From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA. - Optimized Performance for your Workloads: Accelerated, Open, and Efficient
The HPE ProLiant ML350 Gen11 server is an excellent choice for Compute and data storage demanding workloads (AI, ML, telco, DB analytics,) requiring high core count, GPU capabilities, and network and I/O bandwidth.
Harness major compute performance. The HPE ProLiant ML350 Gen11 server is powered by 4th and 5th Gen Intel Xeon Scalable Processors that support up to 64 cores (128 cores per server) at 350W TDP.
Enjoy advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 4 x16 PCIe Gen5 and 2 x16 OCP slots to improve I/O throughput and reduce latency.
Utilize 32 DIMM channels for up to 8 TB DDR5 memory with increased memory bandwidth and performance, and lower power requirements. - Industry-leading Services and Ease of Deployment
The HPE ProLiant ML350 Gen11 server comes with a complete set of HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Services simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an effective solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Points clés
- HPE ProLiant ML350 Gen11 servers are engineered for your hybrid world. The new ProLiant Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
- HPE ProLiant ML350 Gen11 server uses the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the Intel Processor that must be matched exactly before the server will boot. This verifies that malicious code is contained, and healthy servers are protected.
- The HPE ProLiant ML350 Gen11 server is an excellent choice for Compute and data storage demanding workloads (AI, ML, telco, DB analytics,) requiring high core count, GPU capabilities, and network and I/O bandwidth.
- The HPE ProLiant ML350 Gen11 server comes with a complete set of HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
